Matrix Stepper S5X

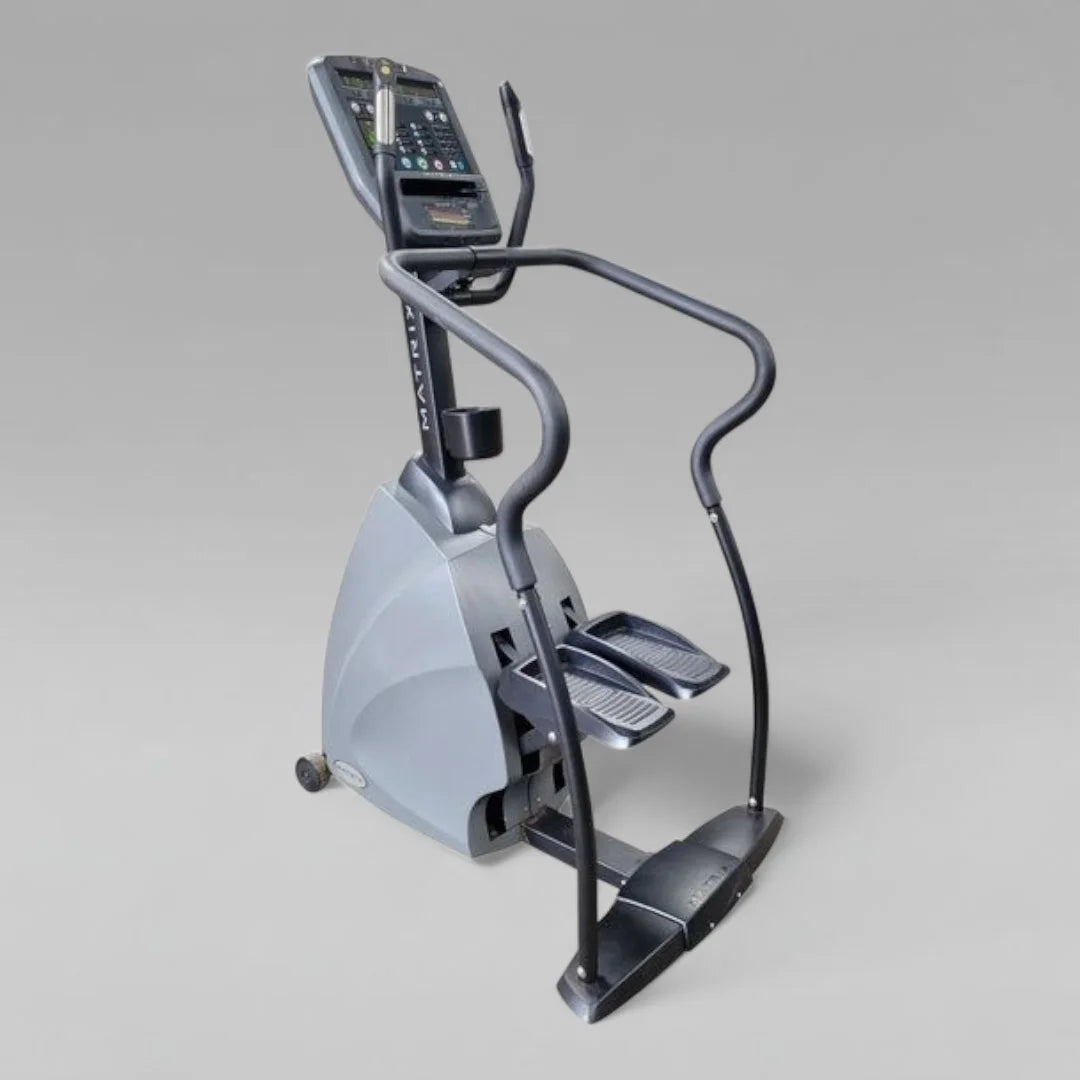

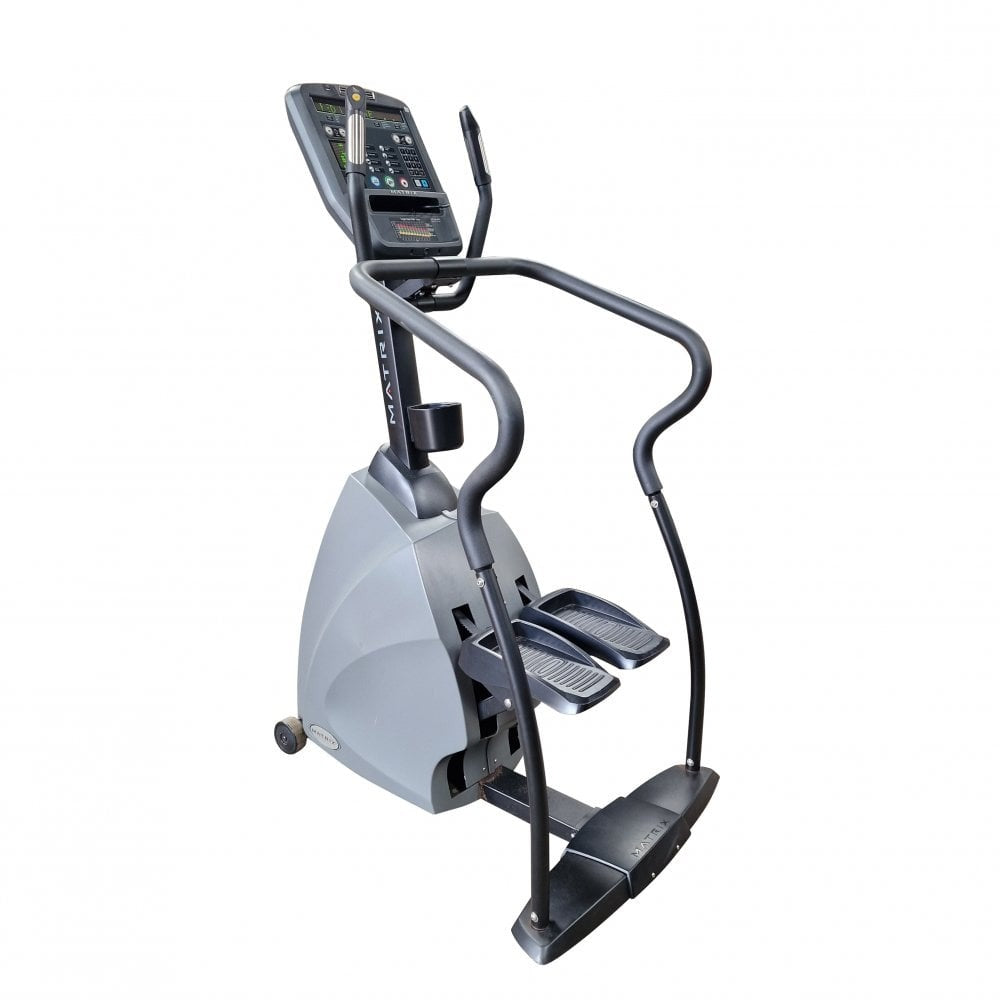

The Matrix S5x-04 Stepper is a commercial-grade cardio machine designed for high-intensity gym environments, featuring a self-powered system and an intuitive LED console. It uses an angled, independent stepping motion to mimic the feel of real stair climbing and includes a maintenance-free belt drive for quiet operation. Key Performance Specifications According to technical specifications from CFF Strength Equipment, the Matrix S5x-04 is built to support heavy-duty use with the following specs: Step Range: 31 cm (12.2 inches). Resistance Levels: 1–25 levels, powered by a JID brushless hybrid generator. Max User Weight: 182 kg (400 lbs). Pedal Spacing: 8.4 cm (3.3 inches) for ergonomic alignment. Assembled Dimensions: 114 x 79 x 179 cm (45" x 31" x 70.5"). Assembled Weight: 116.2 kg (255 lbs). Console and Features The 5x series console is designed for ease of use while providing detailed workout feedback: Display Type: Dot-matrix LED with a profile display that tracks heart rate, calories, floors climbed, and steps per minute (SPM). Workouts: Includes 9 pre-set programs such as Manual, Rolling Hills, Intervals, Fat Burn, Target HR, and a Fitness Test. Heart Rate Monitoring: Features both contact grips and telemetric sensors (chest strap compatible). Amenities: Integrated 3-speed personal fan and a USB port for charging smartphones or tablets. Connectivity: WiFi enabled for the optional Matrix Asset Management system and Workout Tracking Network. Safety and Operation As a commercial unit, the S5x-04 emphasizes durability and user safety: Johnson Health Tech +3 Self-Powered: The unit is primarily self-powered, allowing for flexible placement without needing an outlet, though an optional 100v-240v AC power mode is available. Ergonomics: Features ergonomically designed handrails with Ergo Form grips and ultra non-slip large pedals for stability. Maintenance: The belt-drive system is low-maintenance and designed for smooth, consistent motion under heavy use.
